固态电池前段设备：从混料到纤维化到干法成膜及覆膜全线贯通。混料及纤维化为我司成熟产品；干法成膜设备有5辊，6辊及10辊，速度20m/min，宽度400mm，厚度50~230μm，精度+/-2μm。
精度适合的材料：正极三元，负极石墨。
研发方向：宽幅及高速成膜机，目前正在调试中。图示为六辊成膜覆合一体机。
Front-end equipment for solid-state batteries realizes full-process coverage from material mixing, fiberization, dry film forming to film lamination.Material mixing and fiberization equipment are our mature products. Dry film forming machines are available in 5-roll, 6-roll and 10-roll models, with a running speed of 20m/min, maximum width of 400mm, and processing thickness ranging from 50 to 230μm, with a dimensional accuracy of ±2μm.
Applicable Materials: Ternary cathode materials and graphite anode materials.

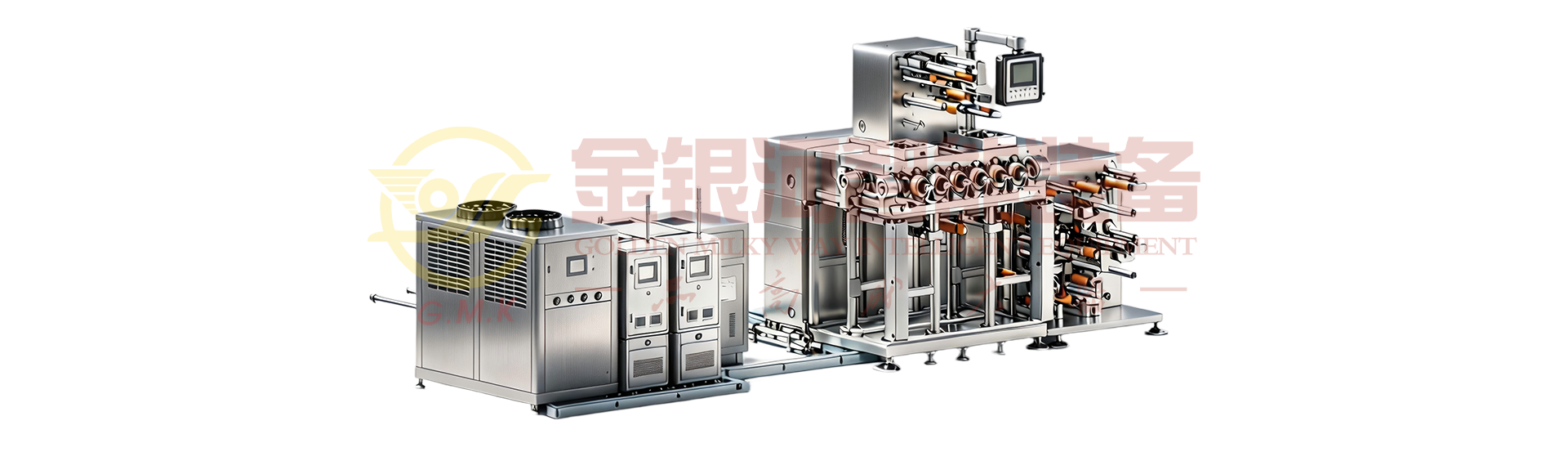

R&D Direction: Wide-width and high-speed film forming machines, currently under commissioning. The attached figure shows the 6-roll film forming & laminating AIO machine.
